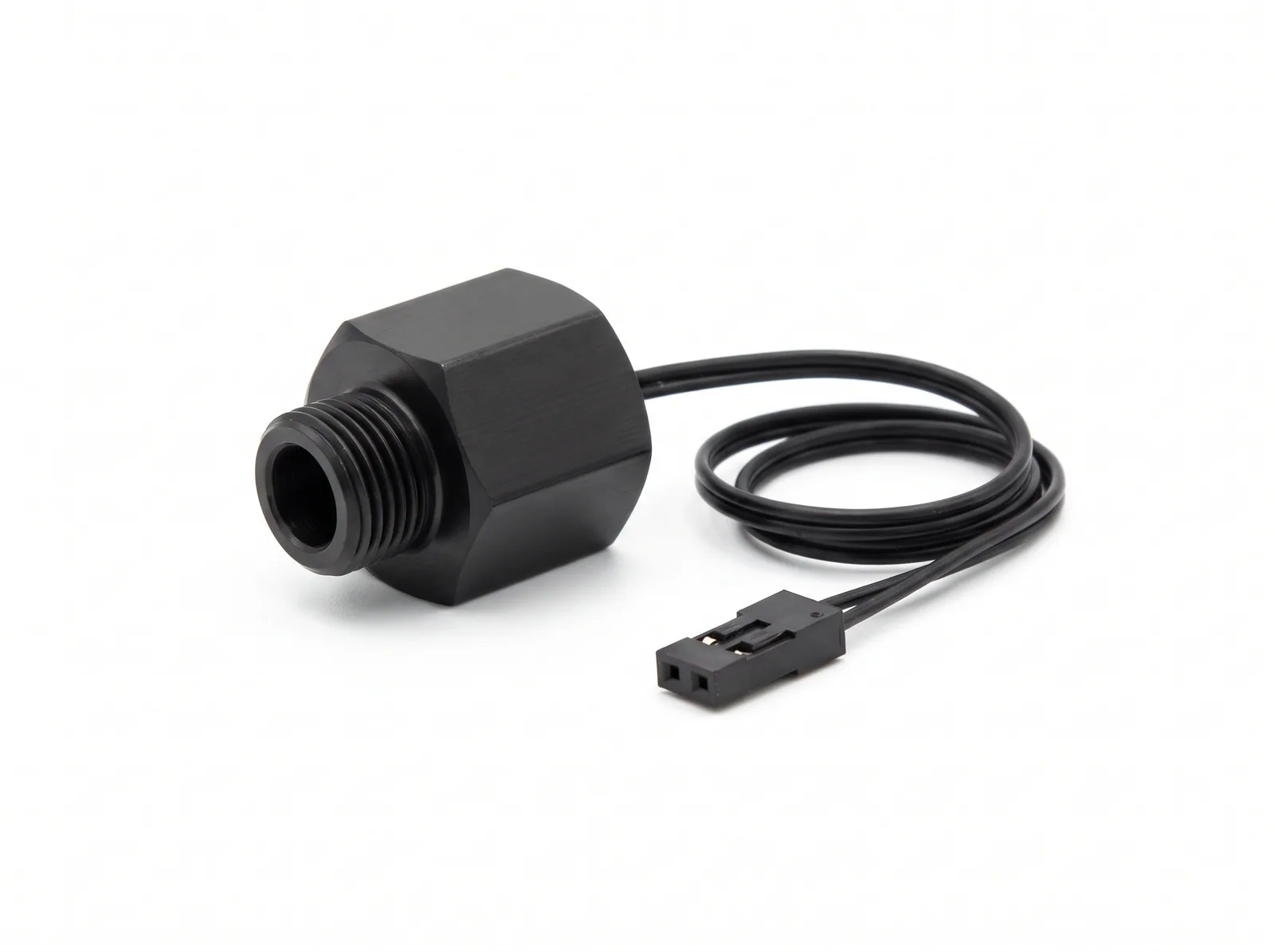

Gauge Inline Temperature Sensor
10 kΩ probe in the flow path, straight to a board header.
$34.00 USD
CA-GAG-FLW · Gauge series
Gauge

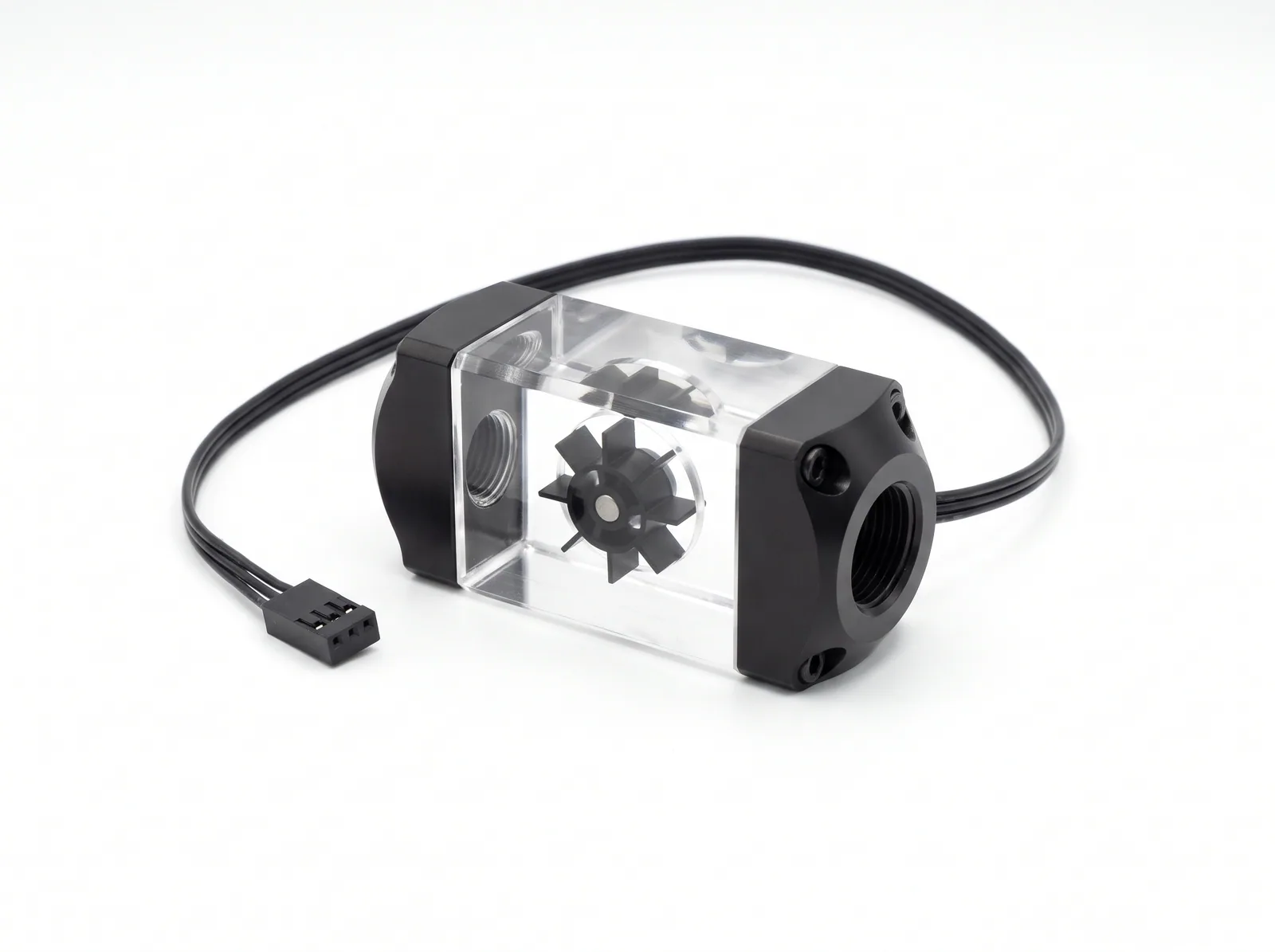

Gauge Flow Meter
Pulse output on a fan header. Tells you the pump stopped.
$69.00USD
All prices are in US dollars (USD). Sales tax calculated at checkout.
How to order this part
Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-GAG-FLW and we will confirm stock, shipping and the total before anything is charged.
How ordering worksFits
- Any G1/4 in port, motherboard fan header
Before you order
- 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
- Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
- Refunds are issued to the original payment method within 5 to 7 business days.
- This is a one-time purchase. There is no subscription, no membership and no recurring charge.
- Your statement will show CRYOANVIL.
About this part
An impeller flow meter that reports as pulses on a standard fan tachometer header, so the loop appears as an rpm reading in whatever monitoring is already running.
The number is not really the point. The point is that a stalled pump becomes visible in seconds instead of at the next thermal shutdown.
Low restriction — under 0.1 psi at 1 GPM.
Materials
- Cast acrylic body
- Acetal impeller
- Plasticiser-free EPDM O-rings
In the box
- Flow meter
- 500 mm 3-pin lead
Specification
| Output | Pulse, 3-pin fan header |
|---|---|
| Range | 0.1 – 5.0 GPM |
| Restriction | Under 0.1 psi at 1.0 GPM |
| Ports | 2 × G1/4 in |
| Body | Cast acrylic, visible impeller |
| Shipping weight | 0.6 lb |
| Warranty | 5 years |
Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
