Kinetic D5 Pump

CA-KNT-D5 · Kinetic series

Kinetic

Kinetic D5 Pump

PWM D5 cartridge, 1,800 to 4,800 rpm, ceramic spindle.

$109.00USD

All prices are in US dollars (USD). Sales tax calculated at checkout.

How to order this part

Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-KNT-D5 and we will confirm stock, shipping and the total before anything is charged.

How ordering works

Fits

  • Standard D5 mounting pattern

Before you order

  • 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
  • Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
  • Refunds are issued to the original payment method within 5 to 7 business days.
  • This is a one-time purchase. There is no subscription, no membership and no recurring charge.
  • Your statement will show CRYOANVIL.

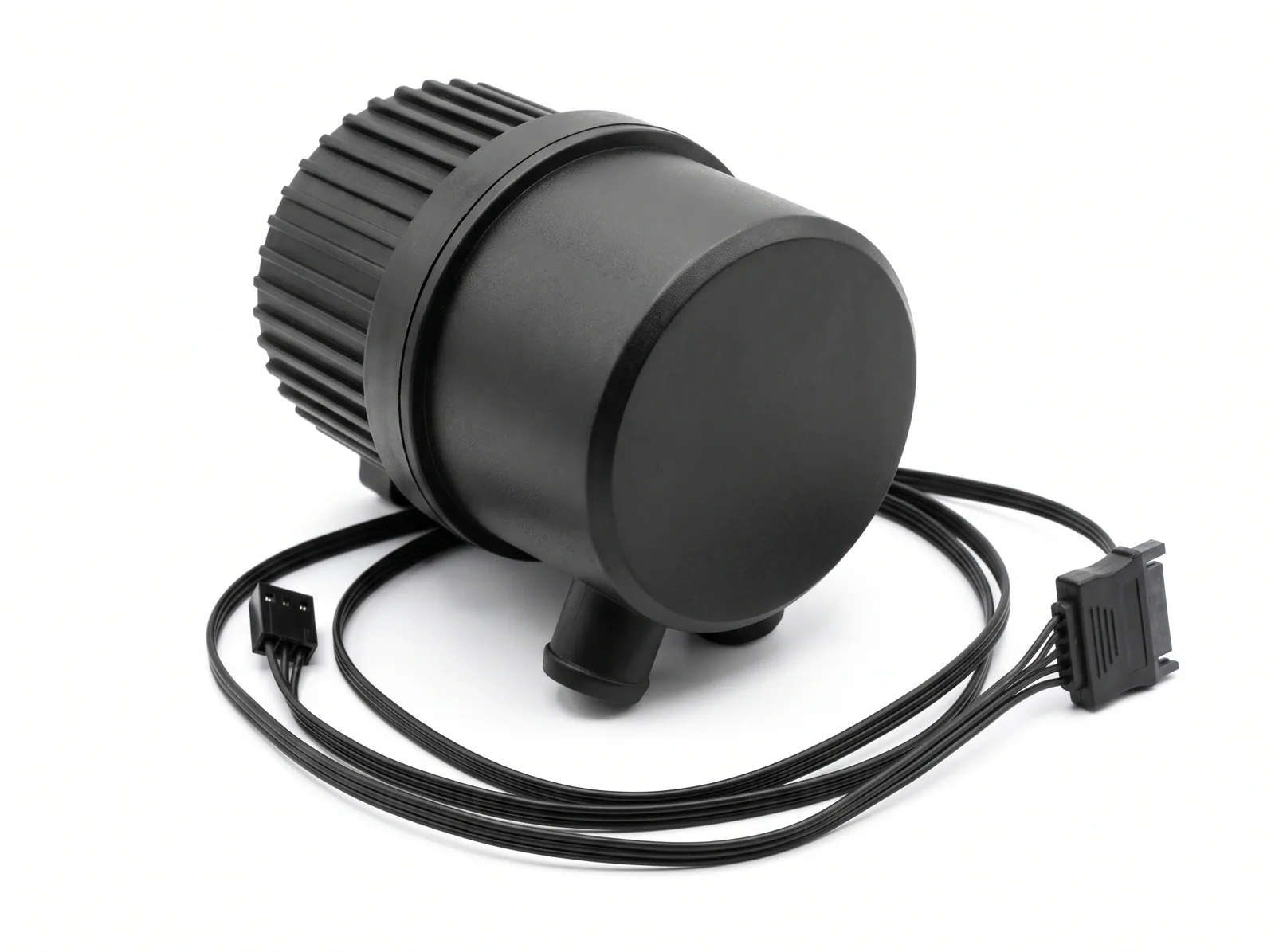

About this part

A PWM-controlled D5 cartridge with a ceramic spindle in a magnetically coupled rotor. There is no shaft seal to fail, because no shaft leaves the wet side.

Speed is controlled from a motherboard header across the full range. At its lowest setting it is inaudible under any fan you would sensibly pair with it.

Ships bare. It needs a top — the Kinetic D5 Top is on this site, and the standard D5 pattern means most others fit as well.

Materials

  • PPS composite housing
  • Ceramic spindle
  • Stainless rotor can

In the box

  • D5 pump cartridge
  • PWM and SATA leads
  • Foam decoupling ring

Specification

Speed1,800 – 4,800 rpm, PWM
Max head3.9 m
Max flow1,500 L/h
Supply12 V DC, 23 W
Connector4-pin PWM and SATA power
BearingCeramic spindle, magnetic drive
Shipping weight1.8 lb
Warranty5 years

Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
