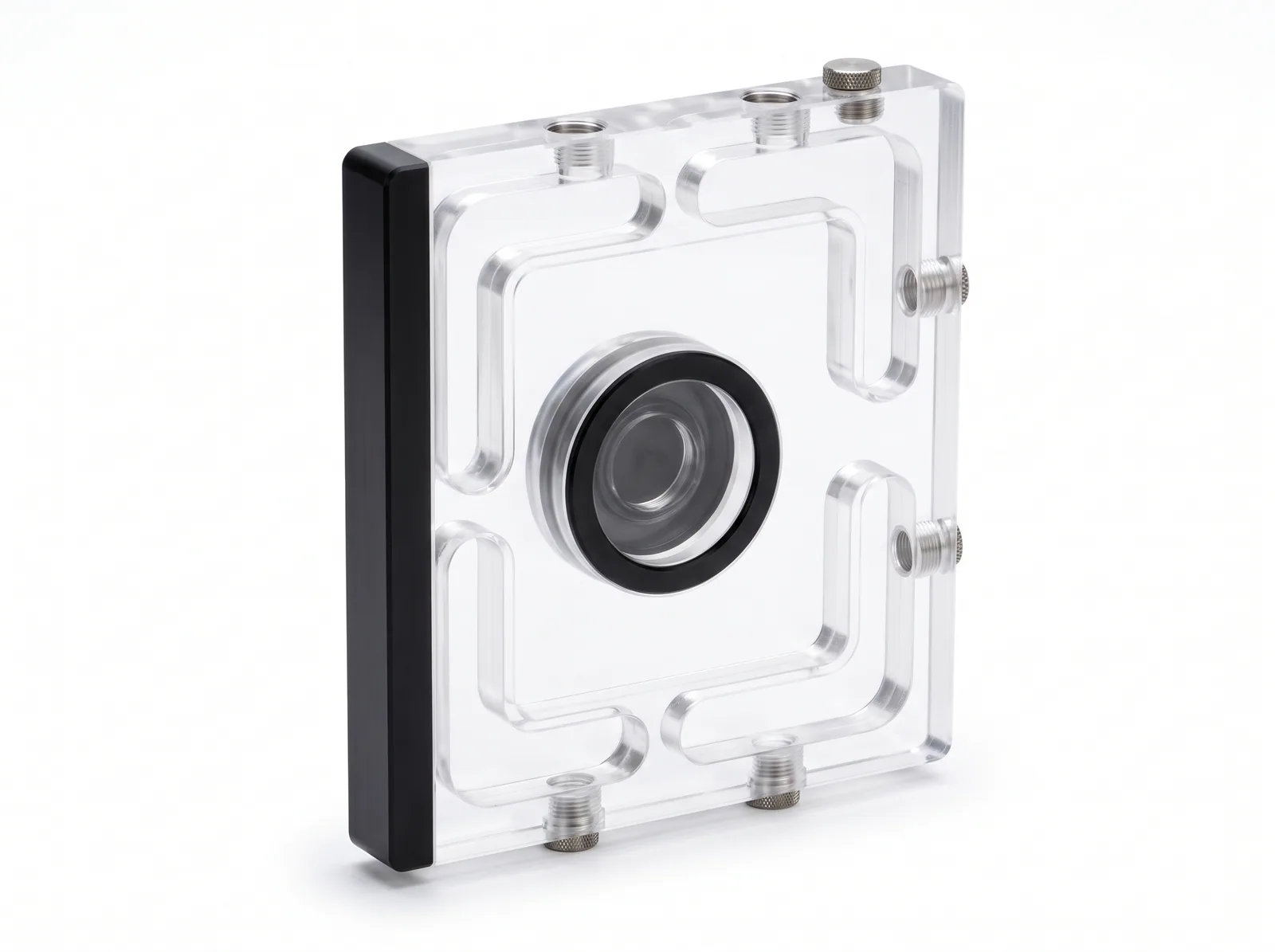

CA-DTM-DP
Datum Distribution Plate
CNC channel plate. Reservoir, pump mount and routing in one part.
$349.00 USD
CA-COL-250 · Column series
Column

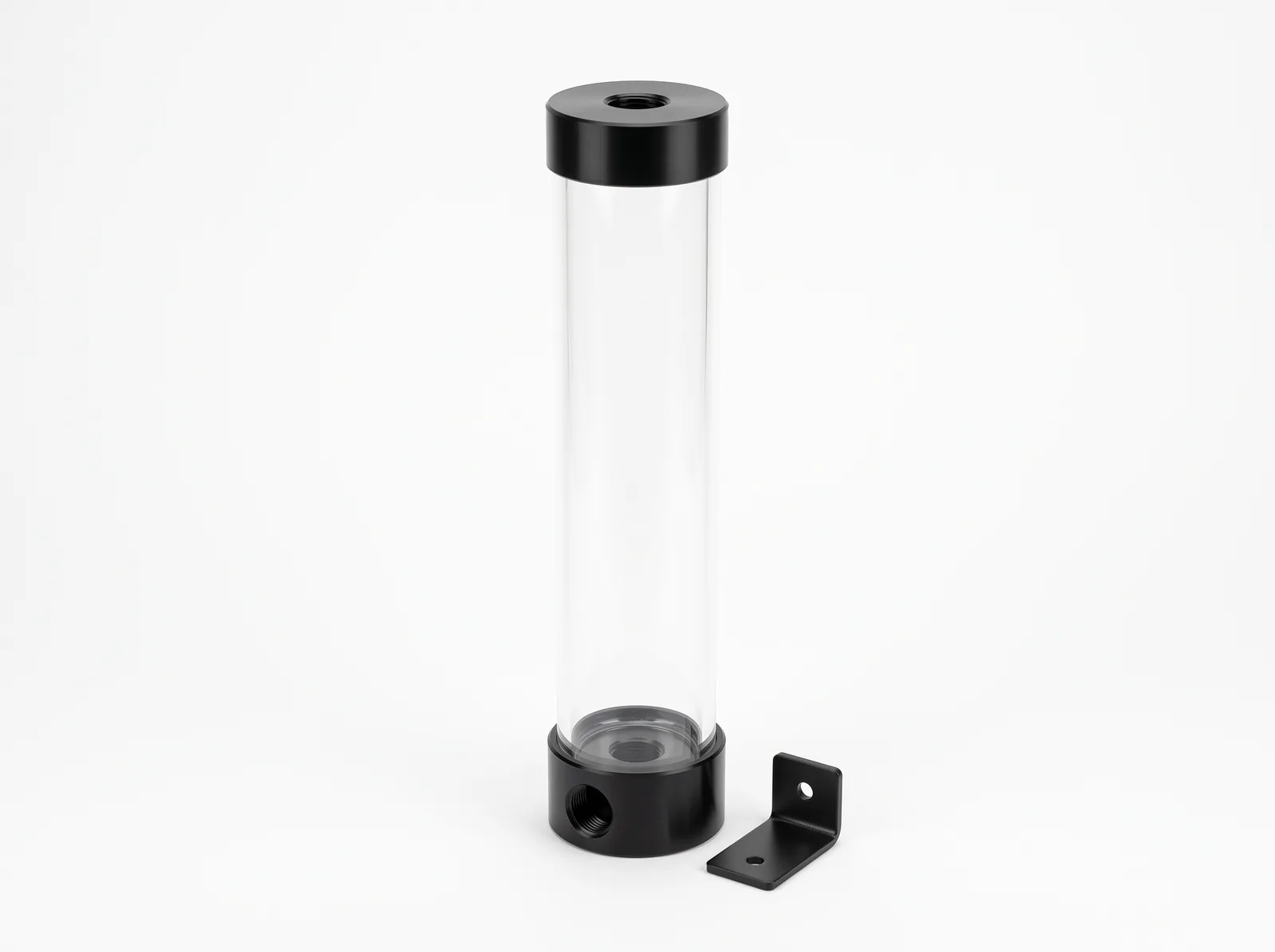

Column 250 Reservoir
250 mm cast acrylic tube, machined caps, five ports.
$79.00USD
All prices are in US dollars (USD). Sales tax calculated at checkout.
How to order this part
Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-COL-250 and we will confirm stock, shipping and the total before anything is charged.
How ordering worksFits
- Bracket included, or mount direct through the cap
Before you order
- 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
- Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
- Refunds are issued to the original payment method within 5 to 7 business days.
- This is a one-time purchase. There is no subscription, no membership and no recurring charge.
- Your statement will show CRYOANVIL.
About this part
A 250 mm cast acrylic tube between two machined acetal caps, with five G1/4 in ports so the fill port does not have to double as the return.
An internal baffle breaks the return flow before it reaches the surface, which is what keeps a reservoir from aerating the loop every time the pump steps up.
Both caps come apart for cleaning, and the O-rings are a standard size you can source anywhere.
Materials
- Cast acrylic tube, stress-relieved
- Machined acetal caps
- Plasticiser-free EPDM O-rings
In the box
- Reservoir assembly
- Anti-cyclone baffle
- 3 × stop fitting
- Mounting bracket
Specification
| Tube length | 250 mm |
|---|---|
| Outside diameter | 60 mm |
| Volume | 410 ml |
| Ports | 5 × G1/4 in |
| Mass | 540 g |
| Shipping weight | 2 lb |
| Warranty | 5 years |
Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
