Cryoanvil
Datum Distribution Plate

CA-DTM-DP · Datum series

Datum

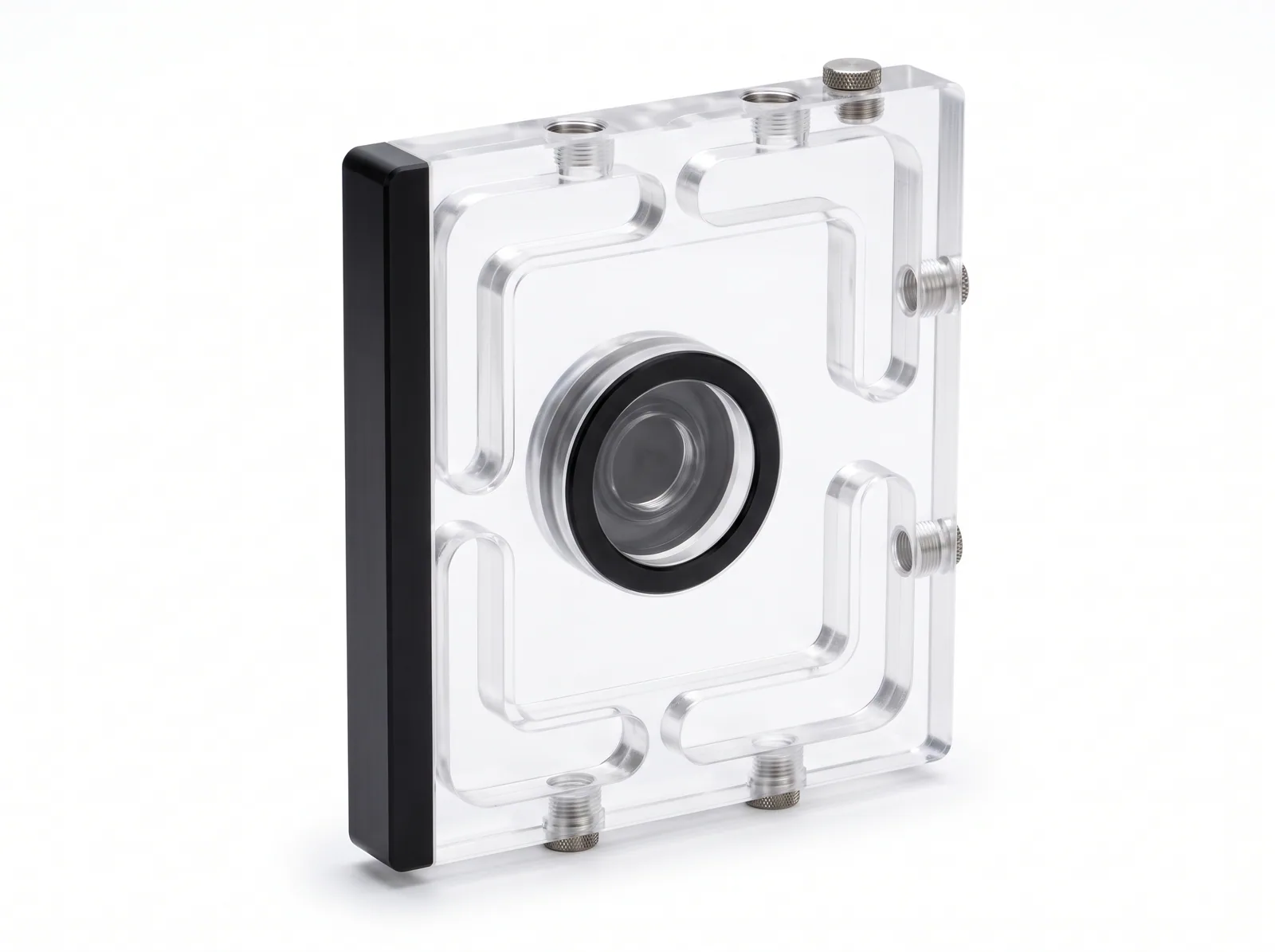

Datum Distribution Plate

CNC channel plate. Reservoir, pump mount and routing in one part.

$349.00USD

All prices are in US dollars (USD). Sales tax calculated at checkout.

How to order this part

Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-DTM-DP and we will confirm stock, shipping and the total before anything is charged.

How ordering works

Fits

  • ATX cases with a rear plate mount — verify depth

Before you order

  • 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
  • Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
  • Refunds are issued to the original payment method within 5 to 7 business days.
  • This is a one-time purchase. There is no subscription, no membership and no recurring charge.
  • Your statement will show CRYOANVIL.

About this part

A distribution plate replaces most of the tubing in a build. The channels are machined into a 25 mm acrylic block, and the only external runs left are block to plate.

This one carries the reservoir volume, a D5 mount and eight ports. Channel corners are radiused rather than square, which costs less head than the drilled-and-plugged construction usually found at this price.

It is cut for a standard ATX standoff pattern. Measure the case before ordering — a distribution plate is the least forgiving part in a loop to get wrong.

Materials

  • Cast acrylic, machined, stress-relieved
  • Anodised aluminium face
  • Plasticiser-free EPDM O-rings

In the box

  • Distribution plate
  • D5 collar
  • Port plug set
  • Standoff kit
  • Leak-test card

Specification

Plate thickness25 mm
Reservoir volume300 ml
Ports8 × G1/4 in
Pump mountD5, integrated
PatternATX standoff pattern
Mass1,850 g
Shipping weight6.2 lb
Warranty5 years

Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
