CA-PLN-240
Plenum 240 Radiator
30 mm copper core at 16 FPI. Brass chambers, steel shroud.
$84.00 USD
CA-PLN-360 · Plenum series
Plenum

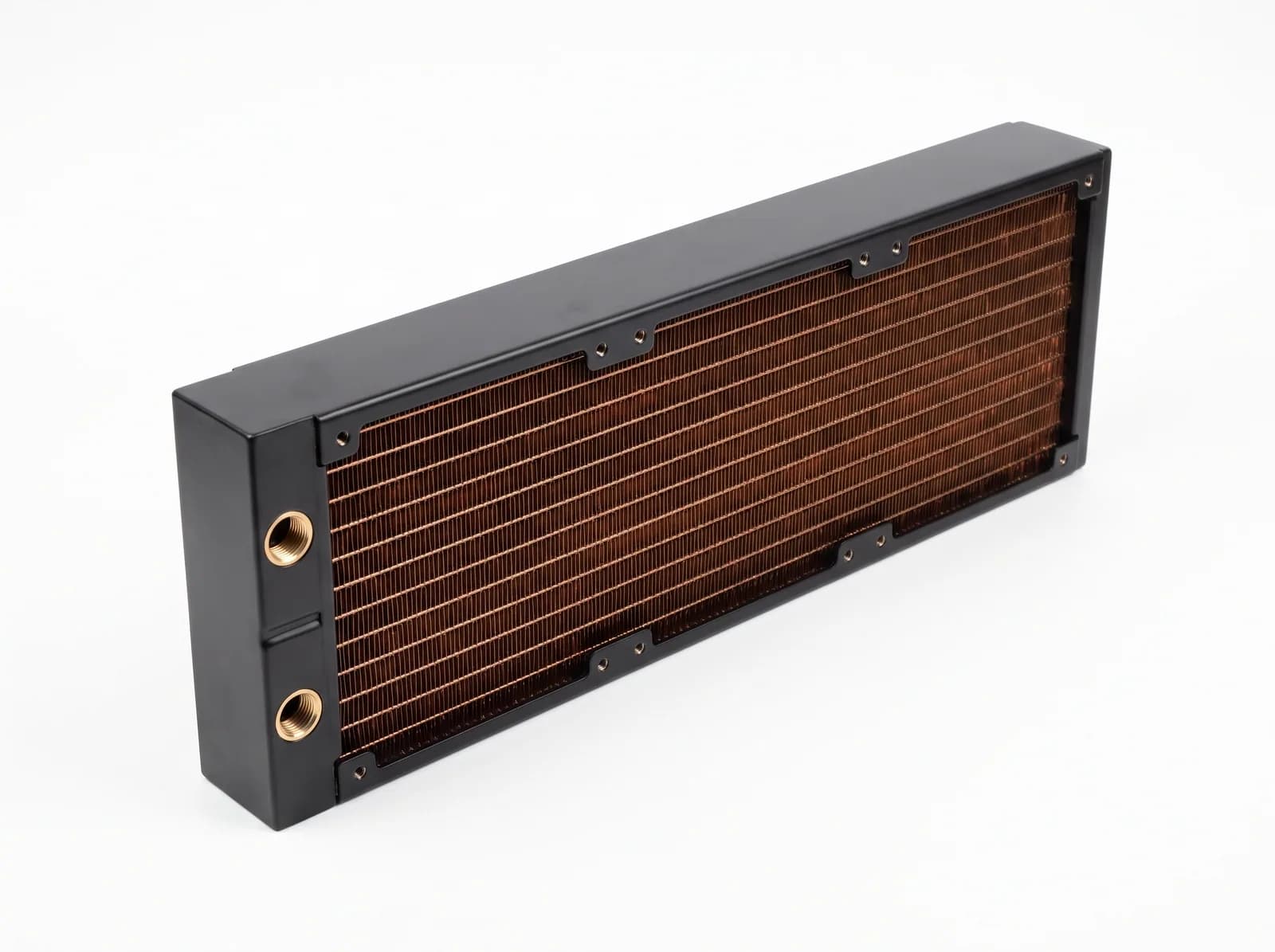

Plenum 360 Radiator
The default front mount. 30 mm core, 16 FPI, three 120s.
$119.00USD
All prices are in US dollars (USD). Sales tax calculated at checkout.
How to order this part
Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-PLN-360 and we will confirm stock, shipping and the total before anything is charged.
How ordering worksFits
- 3 × 120 mm fan mounts
Before you order
- 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
- Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
- Refunds are issued to the original payment method within 5 to 7 business days.
- This is a one-time purchase. There is no subscription, no membership and no recurring charge.
- Your statement will show CRYOANVIL.
About this part
Three 120 mm mounts on the same 30 mm copper core as the 240. This is the size most builds should start with: it fits the front of nearly every mid-tower and it still clears a top-mounted second radiator.
Same brass chambers and machined port block as the rest of the Plenum line.
Pressure-tested at 1.5 bar for fifteen minutes, test card in the box.
Materials
- Copper core and fins
- Brass end chambers
- Powder-coated steel shroud
In the box
- Radiator
- M3 screw set, 30 mm and 35 mm
- Pressure-test card
Specification
| Fan mount | 3 × 120 mm |
|---|---|
| Core thickness | 30 mm |
| Fin density | 16 FPI |
| Ports | 2 × G1/4 in |
| Dimensions | 397 × 124 × 30 mm |
| Test pressure | 1.5 bar, 15 min |
| Mass | 1,240 g |
| Shipping weight | 4.1 lb |
| Warranty | 5 years |
Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
