CA-PLN-240
Plenum 240 Radiator
30 mm copper core at 16 FPI. Brass chambers, steel shroud.
$84.00 USD
CA-PLN-420 · Plenum series
Plenum

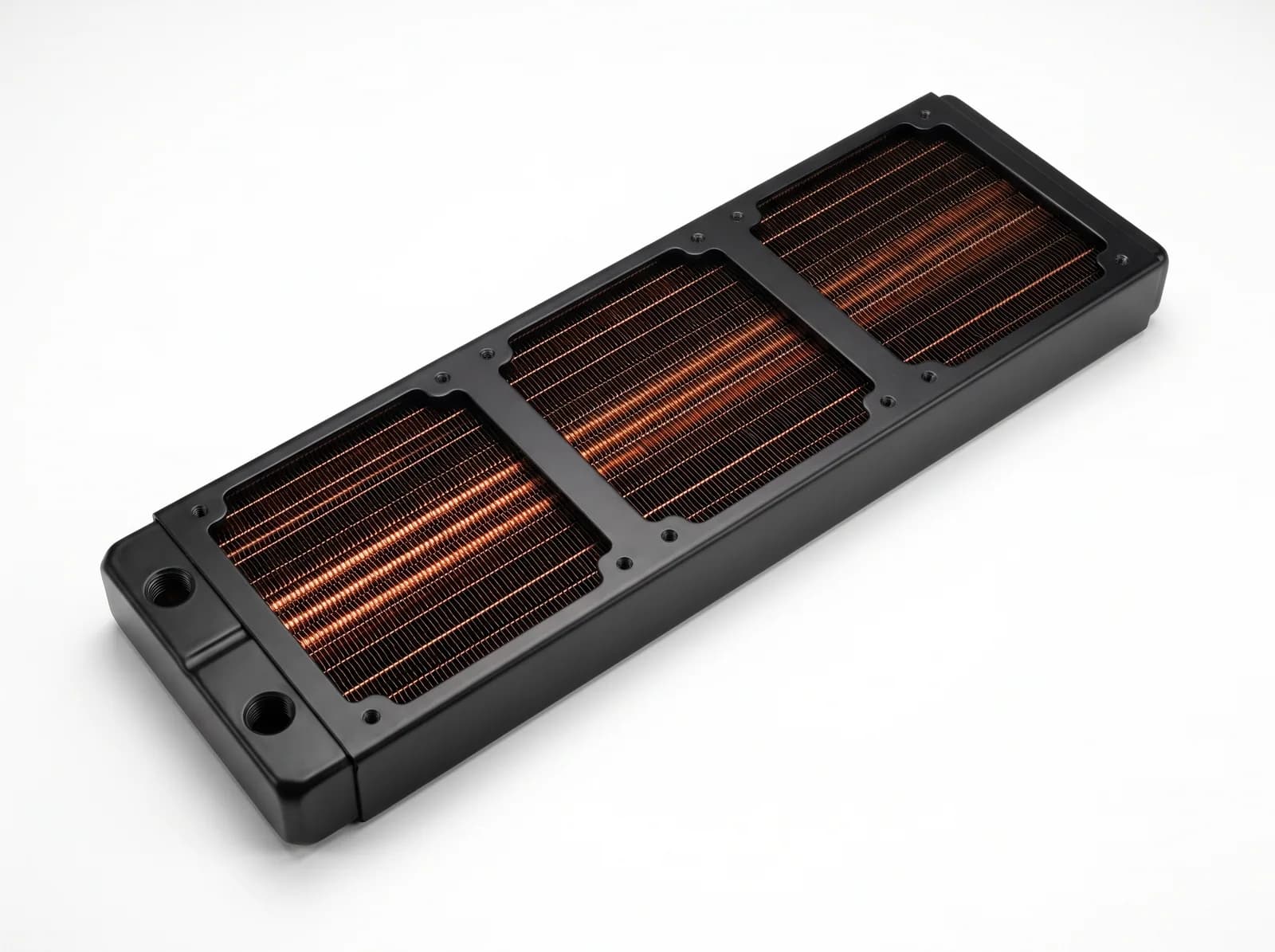

Plenum 420 Radiator
Three 140 mm mounts. Same heat out, lower fan speed.
$139.00USD
All prices are in US dollars (USD). Sales tax calculated at checkout.
How to order this part
Online ordering opens with the storefront launch. Until then, email orders@cryoanvil.com quoting CA-PLN-420 and we will confirm stock, shipping and the total before anything is charged.
How ordering worksFits
- 3 × 140 mm fan mounts
Before you order
- 30-day returns from delivery. Unused parts are refunded in full, with no restocking fee, and we pay return shipping.
- Parts that have had coolant through them cannot be returned for change of mind, but carry the 5-year warranty against defect and seal failure.
- Refunds are issued to the original payment method within 5 to 7 business days.
- This is a one-time purchase. There is no subscription, no membership and no recurring charge.
- Your statement will show CRYOANVIL.
About this part
Three 140 mm mounts on a 30 mm core. Extra frontal area is the cheapest noise reduction available in a loop — the same heat leaves at a lower fan speed.
Check clearance before ordering. A 420 needs 458 mm of run plus fittings, and a number of cases advertise the mount without the depth.
Pressure-tested at 1.5 bar for fifteen minutes.
Materials
- Copper core and fins
- Brass end chambers
- Powder-coated steel shroud
In the box
- Radiator
- M4 screw set, 30 mm and 35 mm
- Pressure-test card
Specification
| Fan mount | 3 × 140 mm |
|---|---|
| Core thickness | 30 mm |
| Fin density | 16 FPI |
| Ports | 2 × G1/4 in |
| Dimensions | 458 × 144 × 30 mm |
| Test pressure | 1.5 bar, 15 min |
| Mass | 1,520 g |
| Shipping weight | 5 lb |
| Warranty | 5 years |
Figures are from our own test bench and are stated at the operating point given. Flow restriction is measured at one gallon per minute against a calibrated manometer with the fixture’s own restriction subtracted.
